 IB9
  • LGA 775
  • Intel® 965
  • FSB1066
  • Dual DDR2 800
  • PCI-E X16
  • SATA 3G
  • GbE LAN
  • 7.1 CH HD Audio
  • RoHS Compliant
    •   Specifications

    Capacitors -For Best Stability

    100% Japanese Made Capacitors significantly reduce heat dissipation and offer best voltage regulation, thereby increasing performance while extending product life and even under most stressful conditions.
    Highly Upgradeable -Expand Your Possibilities
  • Highly Upgradeable
  • 1 x PCI-E X16, 3 x PCI-E X1, 2 x PCI
    		•
    GbE -DSL Ready
  • High Speed Internet
  • 10 USB Ports
    		•
    abit EQ™ -Keep in control of your hardware
  • abit EQ™ Hardware Monitoring
    		•
    CPU
  • Designed for Intel® LGA 775 processors with 1066/800MHz FSB support 2006FMB & 05A
  • Support Intel Core™ 2 Extreme & Core™ 2 Duo & Pentium® D & Pentium®4 & Celeron® D Processors
    		•
    Chipset
  • Intel® P965 / ICH8 Chipset
    		•
    Memory
  • 4 X 240-pin DIMM sockets support max. memory capacity 8GB
  • Supports Dual channel DDR2 800/667/533 Un-buffered Non-ECC memory
    		•
    LAN
  • On board Gigabit LAN controller supports 10/100/ 1000M Ethernet
    		•
    Audio
  • On board 7.1 CH HD Audio CODEC
    		•
    Expansion Slots
  • 1 x PCI-E X16
  • 3 x PCI-E X1
  • 2 x PCI
    		•
    Internal I/O
  • 1 x Floppy Port supports up to 2.88 MB
  • 2 x UDMA 100/66/33 connector (ITE8211F)
  • 4 x SATA 3Gb/s connector
  • 3 x USB header (support 6 ports)
  • 1 x FP-Audio, 1 x CD-In
    		•
    Back Panel I/O
  • 1 x PS/2 Keyboard, 1 x PS/2 Mouse
  • 1 x S/P DIF Out
  • 7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
  • 4 x USB 2.0, 1 x RJ-45 LAN connector
    		•
    Serial ATA
  • ICH8: 4 x SATA 3Gb/s
    		•
    Accessory
  • SATA Bridge (Quick Guide)
    • Form Factor
  • ATX form factor 305 x 245mm
  • PCB Color: Blue
    		•
    RoHS
  • 100% lead-free process and RoHS compliant
    		•
    abit Engineered
  • abit SoftMenu™ Technology
  • 100% Japanese Capacitor
  • CPU Low ESR and high ripple conductive polymer aluminum solid capacitor
    		•
    abit Engineered
    abit Engineered abit SoftMenu™
    The original jumperless motherboard design allows for CPU setting changes completely through the BIOS. For GigaOverclocking! Boost your PC's Performance by up to 50%. Convenient and easy-to-use fine tuning from within a self-explanatory BIOS menu.
    abit Engineered

    Hardware Monitoring
    Monitor temperatures, voltages and fan settings in real time and with zero CPU usage.

    abit Engineered Dedicated fan control
    Keep control over your hardware. abit Fan EQ™ helps you keep an eye on your motherboard fans.
    Total Rows:1  Page:1/1
    Logo
    Media
    Country
    Award
    China
    2007/01/24







    abit Vista

    abit Vista

    Accessory

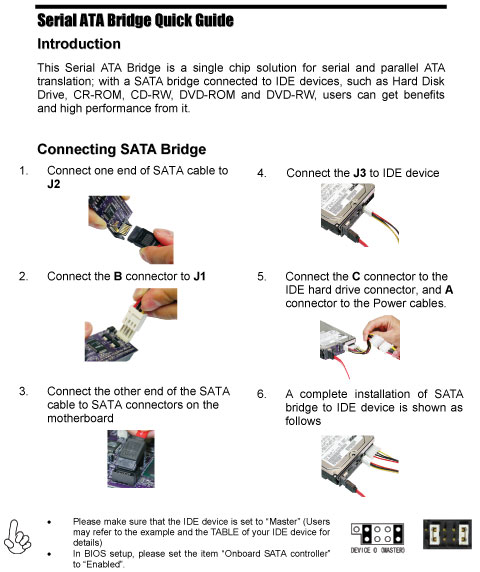

    SATA Bridge Guide

    Optional
    Wi-Fi Accessories
    AirPace
